ATF65226-11
2.4 - 2.5 GHz Front-End Module for 802.11b/g/n/ac
TheATF65226-11 is a complete 802.11 b/g/n/ac WLAN RF front-end module. The module provides all the functionality of the power amplifier, power detector, filter, switch, and low noise amplifier. With all the critical matching, and a 50 Ω interface to the antenna, the module is easy to be used in WLAN applications. The device is packages in a thin 16L QFN 2.5mm x 2.5mm x 0.8mm (max).
Key Features
Frequency range: 2.4 – 2.5 GHz
3.3 V or 5 V single voltage
Output power: +23 dBm @ -35 dB DEVM, VHT40, MCS9, 5 V
Output power: +23 dBm @ -30 dB DEVM, HT20, MCS7, 5 V
Transmit gain: 25 dB @ 5 V
Receive gain: 13 dB @ 5 V
Noise Figure: 2 dB @ 5 V
Integrated high performance PA, LNA with bypass function, and
SP3T switch
Small 16L QFN 2.5mm x 2.5mm x 0.8mm (max) package
RoHS Compliant, Pb-Free, Halogen Free
Moisture Sensitivity Level: MSL 3
Applications
IEEE 802.11b/g/n/ac Wi-Fi Applications
2.4 GHz to 2.5 GHz ISM Band Solutions
Portable Battery-Powered Equipment
Wi-Fi Access Points, Gateways, and Set Top Boxes

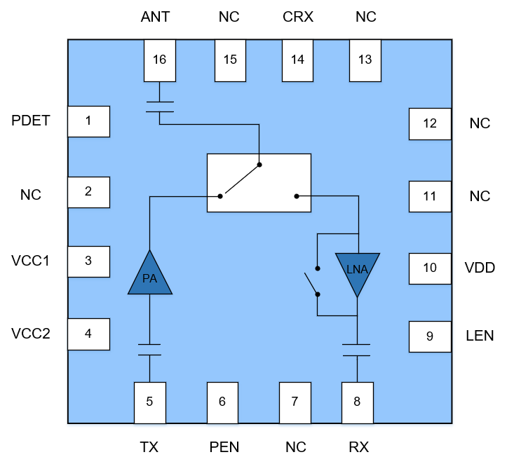

Diagrams
