ATF65684-11
5.9 to 7.1 GHz High-Power WLAN Front-End Module
The ATF65684-11 is a highly integrated, front- end module (FEM) incorporating a single-pole, double-throw (SPDT) transmit/receive (T/R) switch, a high-gain low-noise amplifier (LNA) with bypass, and a power amplifier (PA) intended for high-power 802.11ax applications and systems.
The LNA and PA disable functions ensure low leakage current in the off mode. An integrated logarithmic power detector is included to provide closed-loop power control over 20 dB of dynamic range.
The device is provided in a compact, 24-pin 3 x 5 mm package, which may reduce the front- end board space by more than 50 percent.
Key Features
Integrated high-performance 802.11ax PA, LNA with bypass, T/R
switch, and coupler
Fully matched input and output
Integrated logarithmic power detector
Transmit gain: 35 dB typical
Supports 802.11ax
Output power:
+20 dBm, -43 dB DEVM, MCS11
+22 dBm, -40 dB DEVM, MCS11
+24 dBm, -35 dB DEVM, MCS9
Integrated, temperature-compensated log detector
Highly sensitive, high-gain (16 dB) LNA
Small (24-pin, 3 x 5 mm) package
(MSL3, 260 °C per JEDEC J-STD-020)
Applications
Indoor and outdoor 802.11ax networking systems
WLAN-enabled wireless video streaming systems

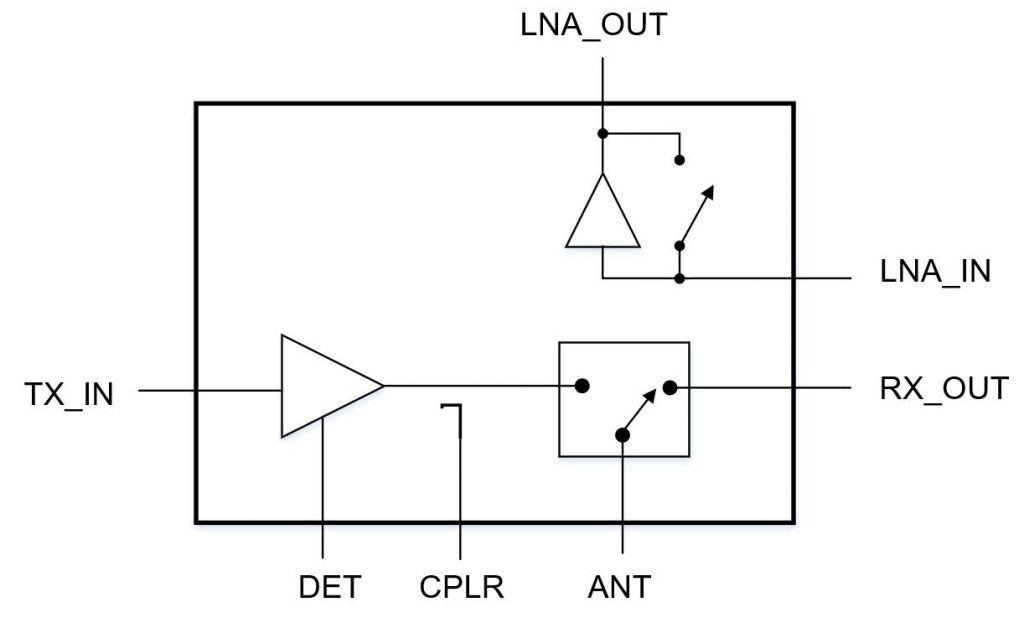

Diagrams
