ATF65572-11
5 GHz, 1024 QAM WLAN Front-End Module
The ATF65572-11 is a highly integrated, 5 GHz front-end module (FEM) incorporating a 5 GHz transmit/receive (T/R) switch, a 5 GHz low-noise amplifier (LNA) with bypass, and a 5 GHz power amplifier (PA) intended for mobile/portable 802.11ax applications and systems.
An integrated power detector is included to provide closed-loop power control within the system.
The device is provided in a compact, 16-pin 3 x 3 mm Quad Flat No-Lead (QFN) package.
Key Features
Integrated 802.11ax, 5 GHz PA, LNA with
bypass, and T/R switch
Fully matched input and output
Integrated logarithmic power detector and
directional coupler
Transmit gain: 32 dB
Receive gain: 15 dB
Small QFN (16-pin, 3 x 3 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)
Applications
802.11ax networking and personal computing systems
PC cards, PCMCIA cards, mini-cards, and half mini-cards
WLAN-enabled wireless video systems

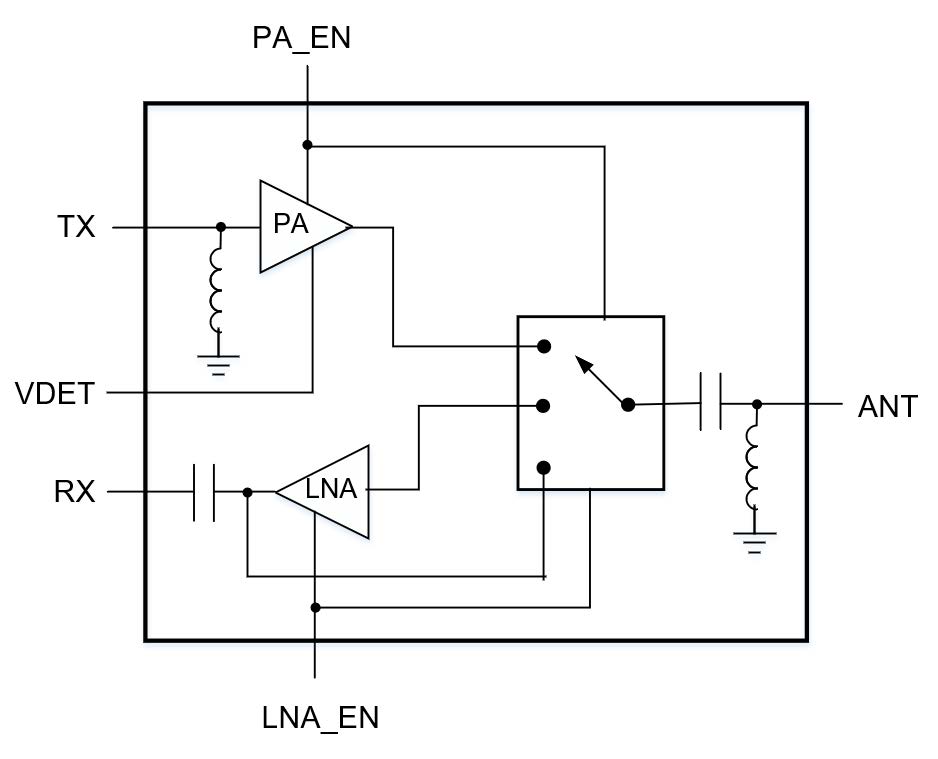

Diagrams
