ATF65546-11
2.4 GHz 802.11ax Ultra-Linear WLAN Front-End Module with Integrated Log Detector
The ATF65546-11 is a highly integrated, 5 GHz front-end module (FEM) incorporating a 5 GHz single-pole, double-throw (SPDT) transmit/receive (T/R) switch, a 5 GHz low- noise amplifier (LNA) with bypass, and a 5 GHz power amplifier (PA) intended for mobile/portable 802.11ax 1024 QAM applications and systems.
The LNA and PA disable functions ensure low leakage current in off mode. An integrated logarithmic power detector is included to provide closed-loop power control within the system.
The device is provided in a compact, 16-pin2.5 x 2.5 mm Quad Flat No-Lead (QFN) package.
Key Features
Integrated 802.11ax 1024 QAM, 5 GHz PA,
LNA with bypass, and T/R switch
Fully matched input and output
Integrated logarithmic power detector
Transmit gain: 32 Db
Receive gain: 13 dB
Output power:
– MCS11, +18 dBm, -43 dB DEVM
– MCS11, +20 dBm, -40 dB DEVM
– MCS9, +23 dBm, -35 dB DEVM
– MCS7, +24 dBm, -30 dB DEVM
Small QFN (16-pin, 2.5 x 2.5 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)
Applications
802.11ax set-top boxes, networking, and personal computer systems
PC cards, PCMCIA cards, mini-cards, and half mini-cards
WLAN-enabled wireless video systems

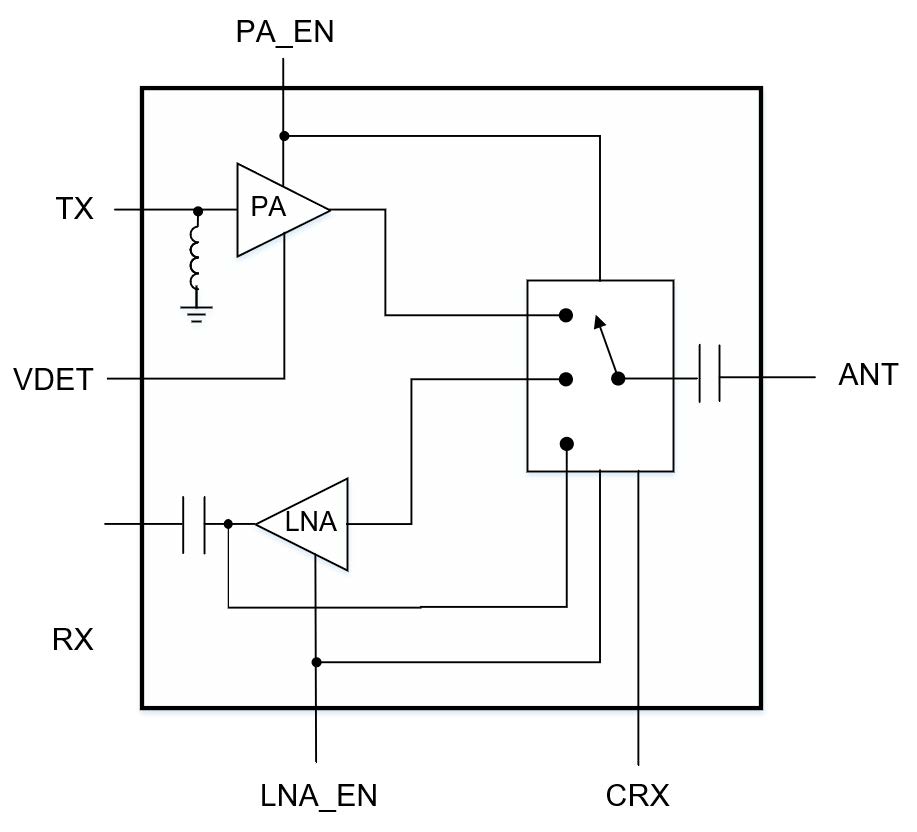

Diagrams
