ATF65230-11
2.4 GHz, 256 QAM WLAN Front-End Module
The ATF65230-11 is a complete 802.11b/g/n 256 QAM WLAN RF front-end module (FEM). The device provides all the functionality of a fully matched power amplifier (PA), power detector, low-noise amplifier (LNA), and single-pole, double-throw (SPDT) switch.
The SKY85330-11 provides a complete 2.4 GHz WLAN RF solution from the output of the transceiver to the antenna, and from the antenna to the input of the transceiver. The LNA increases the receive sensitivity of embedded solutions to improve range or to overcome the insertion loss of cellular filters (often included for mobile applications).
The ATF65230-11 also includes a transmitter power detector with 20 dB of dynamic range, and a digital enable control for transmitter power ramp on/off control.
The device is provided in an ultra-compact, 16-pin 2.5 x 2.5 mm Quad Flat No-Lead (QFN) package.
Key Features
Integrated high-performance 2.4 GHz PA,
LNA with bypass, and T/R switch
Fully-matched input and output
LNA with integrated bypass mode
Integrated positive slope power detector
Transmit gain: 32.5 dB
Receive gain: 16.5 dB
Output power: +18 dBm @ 1.26% (-38 dB)
DEVM, MCS9, HT40
Output power: +21 dBm @ 1.8% (-35 dB)
DEVM, MCS9, HT40
Output power: +22 dBm, @ 3% (-30 dB)
DEVM, MCS7, HT40
Small QFN (16-pin, 2.5 x 2.5 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)
Applications
802.11ac set-top boxes, networking, and personal computer systems
PC cards, PCMCIA cards, mini-cards, and half mini-cards
WLAN enabled wireless video systems

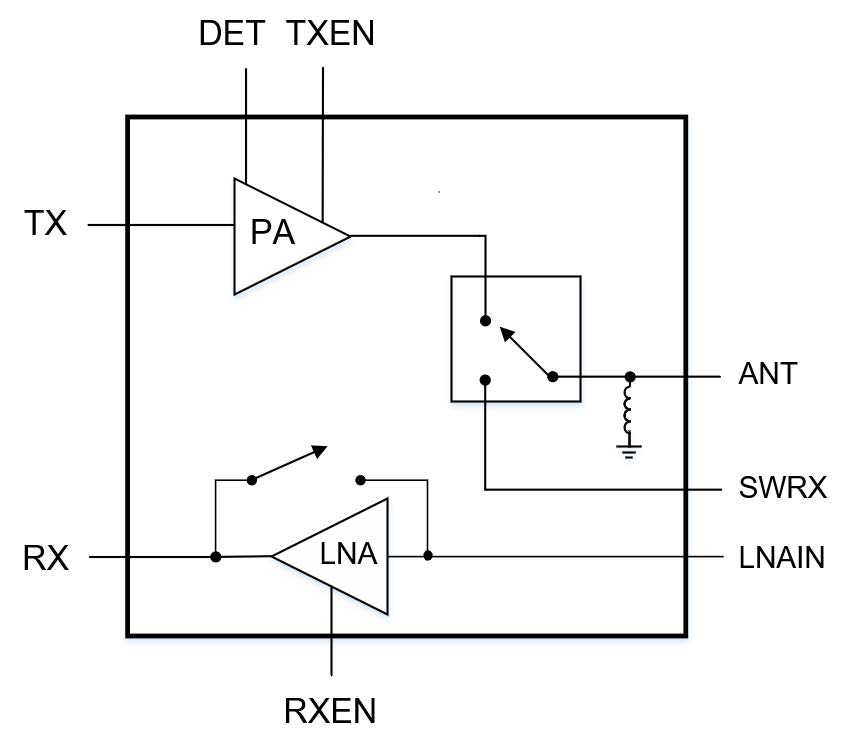

Diagrams
