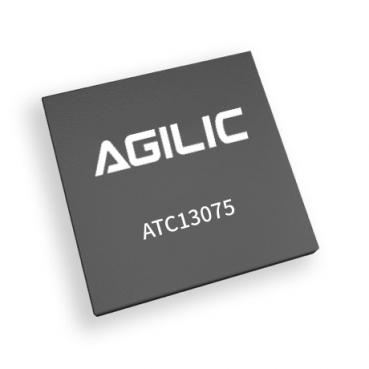

ATC13075
Ultra-Low Jitter Differential XO for Standard Frequencies
The ATC13075 is a differential oscillator with an integrated MEMS resonator, which is engineered for low-jitter applications requiring standard frequencies from 125 MHz to 2.5GHz.
The device also integrates multiple on-chip regulators to filter power supply noise, no need for an external dedicated LDO.
The ATC13075 can be factory programmed for specific combinations of frequency, stability, output signaling, voltage, and output enable functionality. Programmability enables designers to optimize clock configurations while eliminating long lead times and customization costs associated with quartz devices where each combination is custom built.
The wide frequency range and programmability makes this device ideal for communications, enterprise, and industrial applications that require a variety of frequencies and operate in noisy environments.
Key Features
General：
Standard frequencies from 125 MHz to 156.25 MHz，
250 MHz to 312.5 MHz，500 MHz to 625 MHz，
1 GHz to 1.25 GHz，2 GHz to 2.5 GHz.
250 fs RMS typical phase jitter, 12 kHz to 20 MHz
9 fs/mV typical PSNR
LVPECL, LVDS, HCSL, Low-power HCSL, and
FlexSwing signaling options
±20, ±25, ±30, and ±50 ppm frequency stabilities
Wide temperature range (-40°C to 105°C)
Factory programmable options for low lead time
3.3 V, and wide continuous power supply voltage range options
2.5 x 2 mm x mm package (Contact AGILIC
Technologies for 2 x 1.6, 3.2 x 2.5 mm x mm package)
Applications
100G/200G/400G/800G network equipment
Optical modules
Coherent optics
Network switches, routers
Industrial networking equipment
Server and storage systems
Test and measurement
Broadcast video
Block Diagrams
