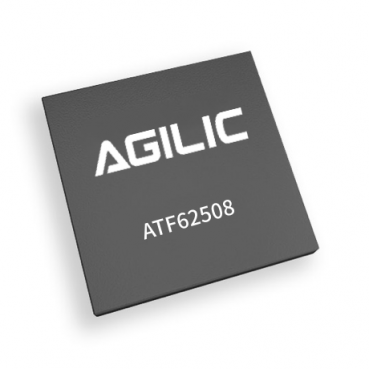

ATF62508-11
5 GHz, 802.11ac Switch / Low-Noise Amplifier Front End
The ATF62508-11 integrates a single-pole, double-throw (SPDT) switch and low-noise amplifier (LNA) with a bypass mode in an ultra-compact package. The device is capable of switching between WLAN receive and WLAN transmit.
The ATF62508-11 is provided in a small, 8-pin, 1.5 x 1.5 mm Dual Flat No-Lead (DFN) package.
Key Features
Frequency range: 4.9 - 5.925 GHz
Integrates an SPDT switch and LNA with bypass mode
Supply Voltage : 2 V
Receive gain: 13 dB
Noise figure: 1.7 dB
LNA IP1dB：-3 dBm
Bypass Loss: 7.5 dB
Transmit path loss: 0.6 dB
Small 8-pin, 1.5 x 1.5 mm DFN package
Applications
WiFi-enabled handsets, tablets, and mobile systems
System-in-Package (SiP) modules for embedded systems
802.11n/ac smartphones and tablets
Diagrams
