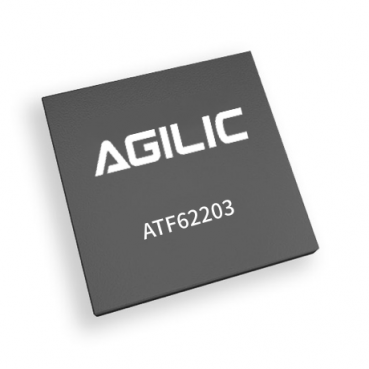

ATF62203-11

2.4 GHz, 802.11ac Switch/Low-Noise Amplifier Front-End

The ATF62203-11 integrates a single-pole, triple-throw (SP3T) switch and low-noise amplifier (LNA) with a bypass mode in an ultra-compact package. The device is capable of switching between WLAN receive, WLAN transmit, and a port suitable for Bluetooth® signals.The ATF62203-11 is provided in a 12-pin, 1.6 x 1.6 mm DFN package.

Key Features

Frequency range: 2.4 - 2.5 GHz

Supply Voltage : 2 V

Integrates an SP3T switch and LNA with bypass mode

Receive gain: 15.5 dB

Noise figure: 1.3 dB

LNA IP1dB:-3 dBm

Bypass Loss: 7 dB

Transmit/ path loss: 0.7 dB for a port suitable for Bluetooth®

signals

Small 12-pin, 1.6 x 1.6 mm DFN package

Applications

WiFi-enabled handsets, tablets, and mobile systems

System-in-Package (SiP) modules for embedded systems

802.11n/ac smartphones and tablets

Diagrams
